DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover

Ask Lasest Price
Brand Name :	DUWAI
Model Number :	DWEC
Certification :	ISO UL
Price :	USD0.05-1.9/METER
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50000 METER per Day

Add to Cart

Product Details
Company Profile

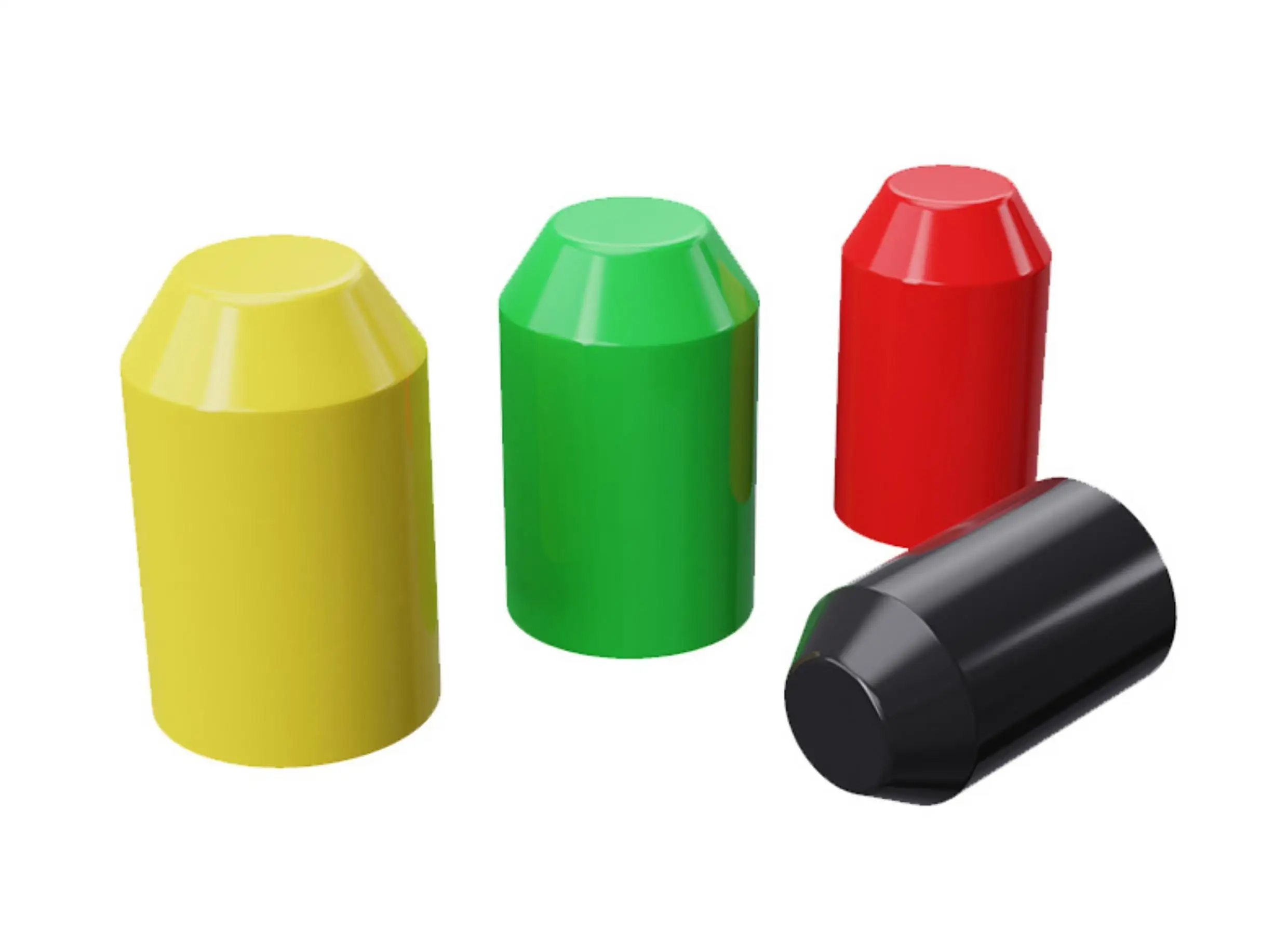

DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover

Products Description

PE black heat shrink wine caps

-Made of cross-linked polyolefin. -Hot melt adhesive lining provides permanent seal on irregular cable sheaths. -Excellent resistance to weathering, moisture, contamination and adverse environmental conditions. -RoHS compliant -Continuous operating temperature: -55℃~110℃ -Shrink temperature: 120℃ -Standard colors: black

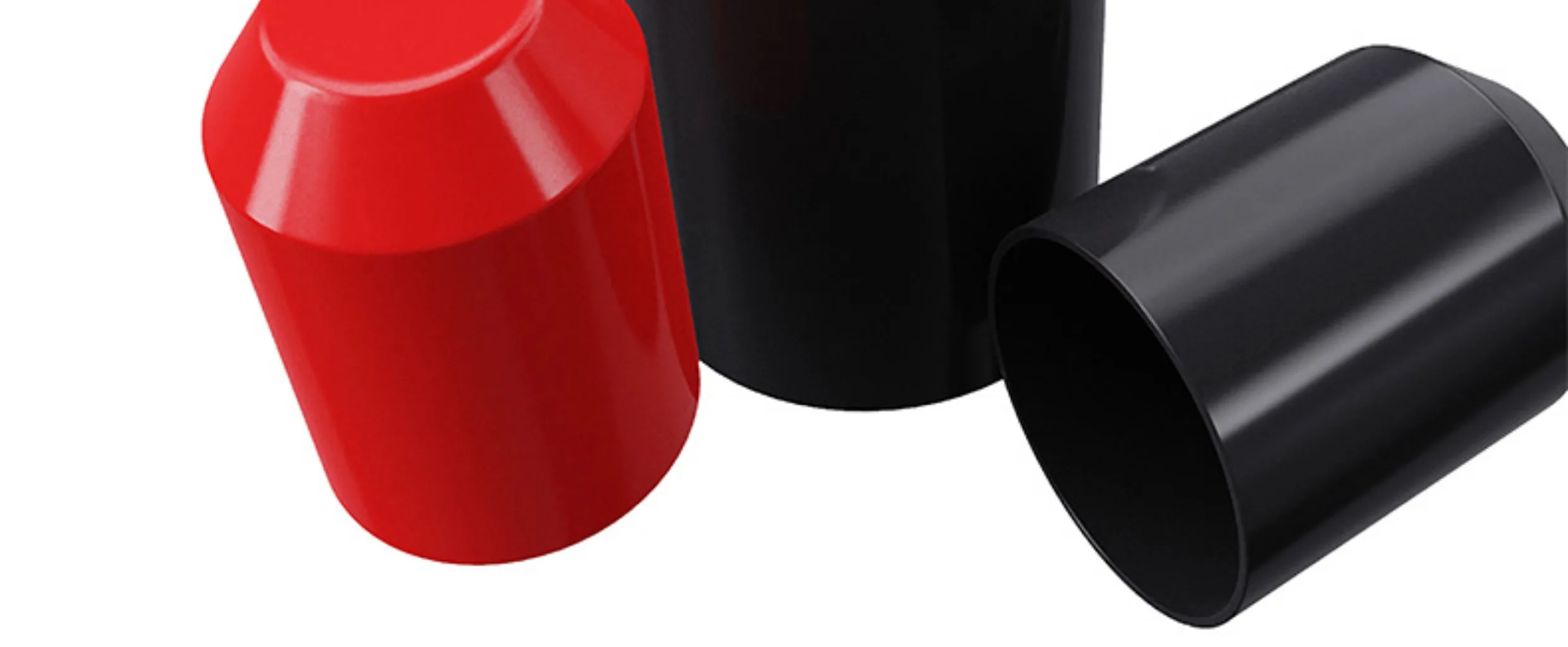

DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover

Specifications(All dimensions are in mm)
Standard Lenght (diameter*lenght)	Extended Lenght (diameter*lenght)	Overlenght (diameter*lenght)	Diameter range of applicable cable
8*25			5-7
10*30			6-9
13*30	13*50		7-11
15*40	15*60	15*100	8-13
18*40	18*60	18*100	11-15
20*40	20*60	20*100	12-17
23*40	23*60	23*100	15-17
25*40	25*60	25*100	16-22
28*40	28*60		17-25
30*40	30*60	30*90	18-27
32*50	32*60		19-28
35*50	35*60	35*90	22-30
40*60	40*80	40*100	25-35
45*60	45*80	45*100	28-40
50*70	50*100		35-45
55*70	55*100		38-50
60*70	60*80	60*100	40-55
65*80	65*100		43-60
70*90	70*120	70*170	45-65
75*90	75*120	75*170	50-70
80*90	80*100	80*120	55-75
85*100	85*120		60-80
90*120			65-85
95*120	95*150		65-90
100*130		100*170	70-90
110*130		110*170	75-100
120*150			80-110
130*150			100-130
150*180			120-150

Specifications(All dimensions are in mm)
Sizes	Inside diameter		Length of coating(A)
Sizes	Minimum expanded as supplied(D)	Maximum reecovered after heating(d)	Length of coating(A)
DWEC-20/8	20	8	20
DWEC-40/15	40	15	30
DWEC-55/25	55	25	35
DWEC-75/30	75	30	50
DWEC-100/45	100	45	50
DWEC-140/65	140	65	60

Specifications(All dimensions are in mm)
Sizes	Inside diameter		Total lenght (L,±10%)	Recovered wall thickness after heating (L,±5%)	Diameter range of applicable cable
Sizes	Minimum expanded as supplied(D)	Maximum recovered after heating(d)	Total lenght (L,±10%)	Recovered wall thickness after heating (L,±5%)	Diameter range of applicable cable
DWEC-12/4	12	4	40	2.6	4-10
DWEC-14/5	14	5	45	2.2	5-12
DWEC-20/6	20	6	55	2.8	6-16
DWEC-25/8.5	25	8.5	68	2.8	8.5-20
DWEC-35/18	35	18	90	3.3	18-30
DWEC-40/20	40	20	90	3.3	20-35
DWEC-55/28	55	28	115	3.4	28-45
DWEC-75/40	75	40	125	3.8	40-65
DWEC-100/50	100	50	140	4.0	50-90
DWEC-120/70	120	70	155	4.0	70-110
DWEC-140/90	140	90	180	4.0	90-130
DWEC-200/110	200	110	270	4.2	110-180
DWEC-250/120	250	120	270	4.2	120-240

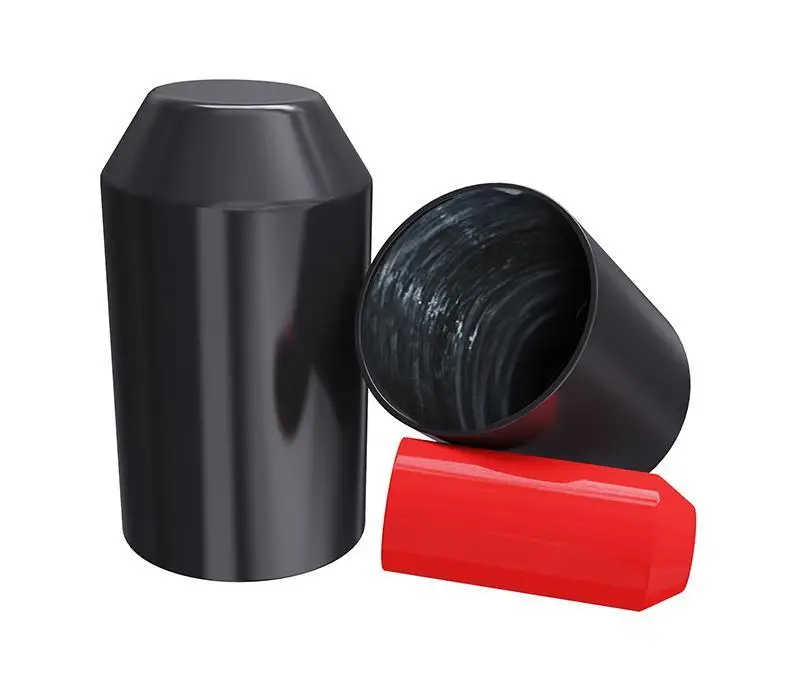

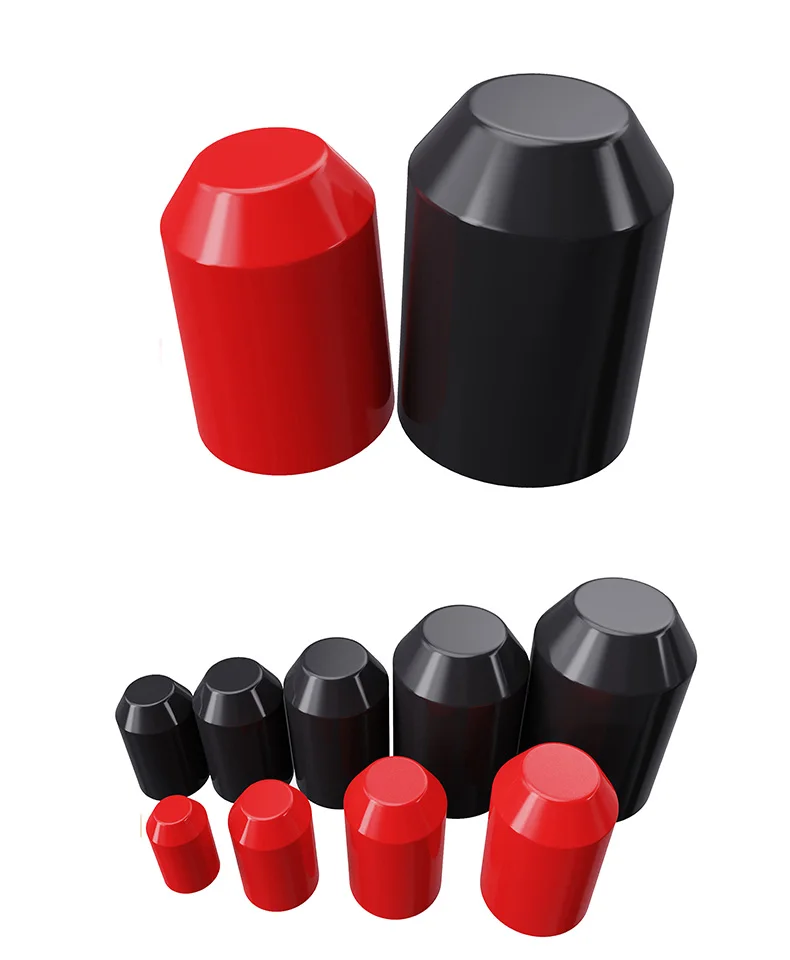

Details Images

Certifications

Product Application

The 1KV heat shrink termination kit finds its application in various electrical systems and installations. Here are some common applications:

1. Power Distribution Systems: The termination kit is used in power distribution systems to connect and terminate cables. It ensures a secure and reliable electrical connection between the cables and the distribution equipment, such as transformers, switchgear, or distribution panels.

2. Electrical Panels and Cabinets: The kit is employed in electrical panels and cabinets where cables need to be terminated. It provides insulation and protection to the cable terminations, preventing any electrical faults or short circuits.

3. Industrial Machinery: The termination kit is utilized in industrial machinery and equipment that require 1KV-rated cable terminations. It ensures proper electrical connections between the machinery and the power supply, enabling safe and efficient operation.

4. Renewable Energy Systems: In renewable energy installations like solar or wind power systems, the kit is used to terminate the cables that connect the renewable energy sources (such as solar panels or wind turbines) to the power conversion and distribution equipment.

5. Building Wiring and Construction: The termination kit finds application in building wiring and construction projects where 1KV-rated cables are used. It facilitates the safe and reliable connection of cables to electrical outlets, switches, or distribution points within the building infrastructure.

Overall, the 1KV heat shrink termination kit is widely applied in various electrical systems and installations to
ensure secure, insulated, and reliable connections for cables in diverse industries and applications.
